Japanese-U.S. team demonstrates X-ray telescope sharp enough for CubeSats, challenging billion-dollar observatory model

Japanese-U.S. team demonstrates X-ray telescope sharp enough for CubeSats, challenging billion-dollar observatory model

New Capabilities
By Newzino Staff |

A seamless nickel mirror cast at a synchrotron facility achieved Chandra-class resolution in a package small enough for a shoebox satellite

Yesterday: Published results confirm sub-arcsecond X-ray mirror performance

Overview

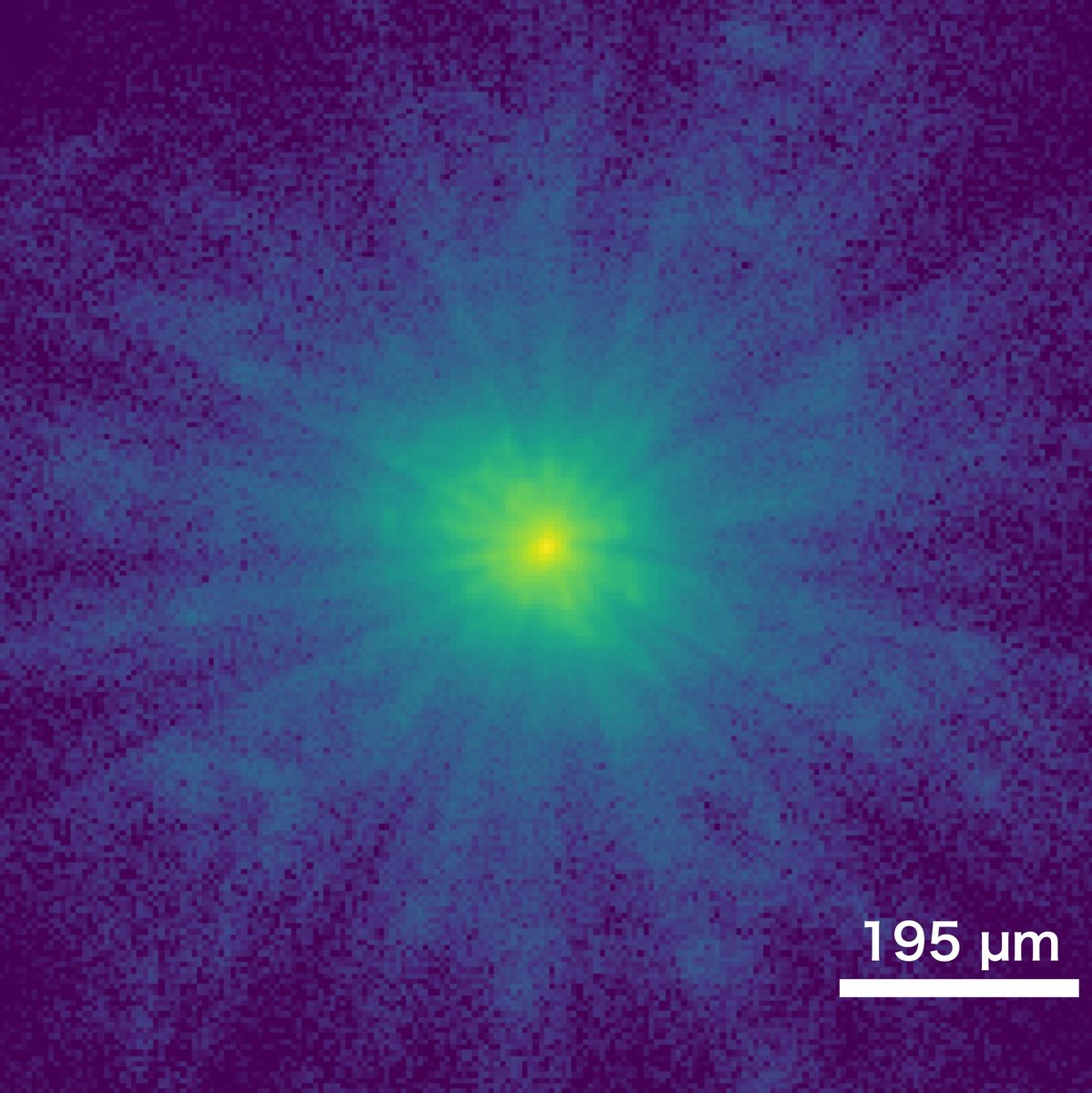

For a quarter century, one telescope has dominated X-ray astronomy: NASA's Chandra, a bus-sized, $1.65 billion observatory with mirrors 1.2 meters across. Now a team from Nagoya University and Japan's SPring-8 synchrotron has produced a single seamless nickel mirror just 60 millimeters wide that matches Chandra's core sharpness — resolving an object 3.5 millimeters wide from a kilometer away. The mirror flew on the FOXSI-4 sounding rocket in April 2024 and captured images of a solar flare.

Why it matters

If this mirror technology scales to CubeSats, university labs — not just space agencies — could afford to launch X-ray space telescopes.

Key Indicators

0.7"
Angular resolution (FWHM)
Core sharpness of the new mirror, comparable to Chandra's 0.5-arcsecond benchmark
60 mm
Mirror diameter
One-twentieth the size of Chandra's 1.2-meter mirrors, small enough for compact satellites
$1.65B
Chandra mission cost
The price tag for the current gold-standard X-ray observatory, launched in 1999
3
Mirrors from one mold
Three mirrors replicated from a single quartz mandrel without repolishing, suggesting scalable production

Interactive

Exploring all sides of a story is often best achieved with Play.

Ever wondered what historical figures would say about today's headlines?

Sign up to generate historical perspectives on this story.

Sign Up

Debate Arena

Two rounds, two personas, one winner. You set the crossfire.

People Involved

Ikuyuki Mitsuishi
Ikuyuki Mitsuishi
Leading continued development; preparing upgraded mirror for FOXSI-5
RF
Ryuto Fujii
Published first-author paper on electroformed X-ray optics
 Lindsay Glesener
Lindsay Glesener
Preparing FOXSI-5 mission for spring 2026

Organizations Involved

Nagoya University
Nagoya University
Research University
Lead institution for electroformed mirror development

One of Japan's top research universities and home to the X-ray optics group that developed the electroforming technique bridging synchrotron and space astronomy.
SPring-8
SPring-8
Synchrotron Radiation Facility
Provided 1-km beamline for mirror testing

One of the world's largest synchrotron radiation facilities, located in Hyogo Prefecture, Japan, whose kilometer-long beamline enabled ground testing that simulated celestial X-ray sources.
FOXSI (Focusing Optics X-ray Solar Imager)
FOXSI (Focusing Optics X-ray Solar Imager)
NASA Sounding Rocket Program
FOXSI-5 planned for spring 2026

The first solar-dedicated instrument to observe hard X-rays using focusing optics, serving as a flight-proven testbed for new X-ray telescope technologies.

Timeline

  1. Published results confirm sub-arcsecond X-ray mirror performance

    Publication

    The paper appears in Publications of the Astronomical Society of the Pacific, reporting a 0.7-arcsecond core resolution for the 60-mm electroformed mirror — comparable to Chandra at a fraction of the size. Coverage highlights the potential for CubeSat-scale X-ray astronomy.

  2. Team submits full paper to PASP

    Publication

    Fujii, Mitsuishi, and 21 co-authors submit their paper detailing the electroforming fabrication process, ground testing at SPring-8's kilometer-long beamline, and flight results from FOXSI-4.

  3. FOXSI-4 flies Nagoya electroformed mirror, observes solar flare

    Mission

    FOXSI-4 launches from Poker Flat, Alaska as part of NASA's first solar flare campaign. The payload carries seven X-ray telescopes including Nagoya University's seamless electroformed mirror. It captures a GOES M1.8 solar flare in its decay phase — the first time a flare was the dedicated target of a rocket launch.

  4. FOXSI-3 achieves single-photon X-ray imaging of the Sun

    Mission

    Under new principal investigator Lindsay Glesener, FOXSI-3 produces the first soft X-ray solar image using single-photon counting, recording each individual X-ray photon.

  5. FOXSI-2 finds evidence of nanoflare heating

    Mission

    The second FOXSI flight detects hard X-ray emission from a quiescent solar region, providing the strongest evidence at the time that nanoflares heat the corona to over 10 million kelvin. Results publish in Nature Astronomy.

  6. FOXSI-1 takes first focused hard X-ray solar images

    Mission

    The first FOXSI sounding rocket launches from White Sands, New Mexico, demonstrating that focusing optics can image the Sun in hard X-rays — a capability previously unavailable.

  7. Chandra X-ray Observatory launches

    Context

    NASA deploys the $1.65 billion Chandra telescope, which achieves 0.5-arcsecond angular resolution using four nested iridium-coated mirror pairs each 1.2 meters in diameter. It becomes the gold standard for X-ray imaging for the next quarter century.

Scenarios

1

CubeSat X-ray telescope flies within five years, proves concept

Discussed by: Nagoya University press materials; SpaceDaily and Phys.org coverage

The team or a collaborating group scales the electroformed mirror for a CubeSat mission, demonstrating focused X-ray imaging from a platform costing under $10 million. This would validate the manufacturing approach in a true orbital environment — surviving launch vibrations, thermal cycling, and long-duration operation — and trigger follow-on missions from other research groups. FOXSI-5, scheduled for spring 2026, will fly an upgraded version of the mirror and could accelerate this path.

2

Scaling challenges keep technology confined to sounding rockets

Discussed by: Astronomy community commentators noting open engineering questions

Shrinking the mirror to CubeSat dimensions while maintaining sub-arcsecond precision proves harder than expected. Harsher vibration environments on small launch vehicles, tighter thermal margins, and the difficulty of nesting multiple shells for adequate collecting area could limit the technique to sounding rocket demonstrations. The breakthrough would still advance the field but not democratize it.

3

Electroforming adopted by major future X-ray observatory programs

Discussed by: Context from NASA's AXIS probe concept and ESA's Athena mission

The replicability advantage — three mirrors from one mandrel, no repolishing needed — attracts interest from flagship mission designers seeking to reduce manufacturing cost. If electroformed mirrors can be nested into larger assemblies while preserving precision, the technique could compete with the polished-glass approach used by Chandra or the silicon-pore optics being developed for ESA's Athena mission. This would represent a fundamental shift in how X-ray telescope mirrors are manufactured.

Historical Context

Wolter Type-I X-ray telescope design (1952)

1952

What Happened

German physicist Hans Wolter proposed using two curved mirror surfaces — a paraboloid followed by a hyperboloid — to focus X-rays at grazing incidence angles. Because X-rays pass through conventional lenses and bounce off normal mirrors, they can only be redirected by hitting a surface at a very shallow angle, like a stone skipping on water. Wolter's nested-shell geometry became the foundation for every major X-ray space telescope.

Outcome

Short Term

The design remained theoretical for over a decade due to manufacturing difficulty.

Long Term

Every X-ray space telescope from Einstein (1978) to Chandra (1999) to XMM-Newton (1999) uses Wolter-type optics. The Nagoya mirror is also a Wolter type-I design — but cast as a single piece rather than assembled from segments.

Why It's Relevant Today

The Nagoya breakthrough doesn't change the fundamental optical design — it changes how that design is manufactured. Wolter proposed the geometry; electroforming may be the technique that finally makes it affordable.

CCD revolution in optical astronomy (1970s–1990s)

1976–1990

What Happened

Charge-coupled device sensors, originally developed at Bell Labs, replaced photographic plates at observatories worldwide. The first astronomical CCD image was taken in 1976 at the University of Arizona's 61-inch telescope. By the late 1980s, CCDs had made large photographic plates obsolete, dramatically lowering the cost and increasing the sensitivity of optical telescopes.

Outcome

Short Term

Astronomers could detect objects 100 times fainter than photographic plates allowed.

Long Term

CCDs democratized optical astronomy. Amateur astronomers with small telescopes and CCD cameras began contributing publishable science. The technology enabled the era of large sky surveys.

Why It's Relevant Today

Electroformed X-ray mirrors could play a similar democratizing role. Just as CCDs let smaller telescopes do science previously reserved for the largest observatories, affordable X-ray optics could let CubeSats do work that currently requires billion-dollar missions.

Planet-hunting with CubeSats: ASTERIA (2017)

November 2017 – March 2020

What Happened

NASA's Jet Propulsion Laboratory flew ASTERIA (Arcsecond Space Telescope Enabling Research in Astrophysics), a 6U CubeSat — roughly the size of a cereal box — that demonstrated the ability to measure tiny dips in starlight caused by transiting exoplanets. Built for under $20 million, it achieved pointing stability of a few arcseconds, a capability previously limited to full-sized space telescopes.

Outcome

Short Term

ASTERIA detected a known exoplanet transit around the star 55 Cancri, proving that CubeSats could do precision photometry.

Long Term

It established that CubeSats could serve as legitimate astronomical observatories, not just technology demonstrators, opening the door to constellations of small, cheap telescopes.

Why It's Relevant Today

ASTERIA proved CubeSats could do real astronomy in visible light. The Nagoya mirror aims to extend that proof to X-rays, a wavelength range that has remained the exclusive domain of large, expensive missions.
